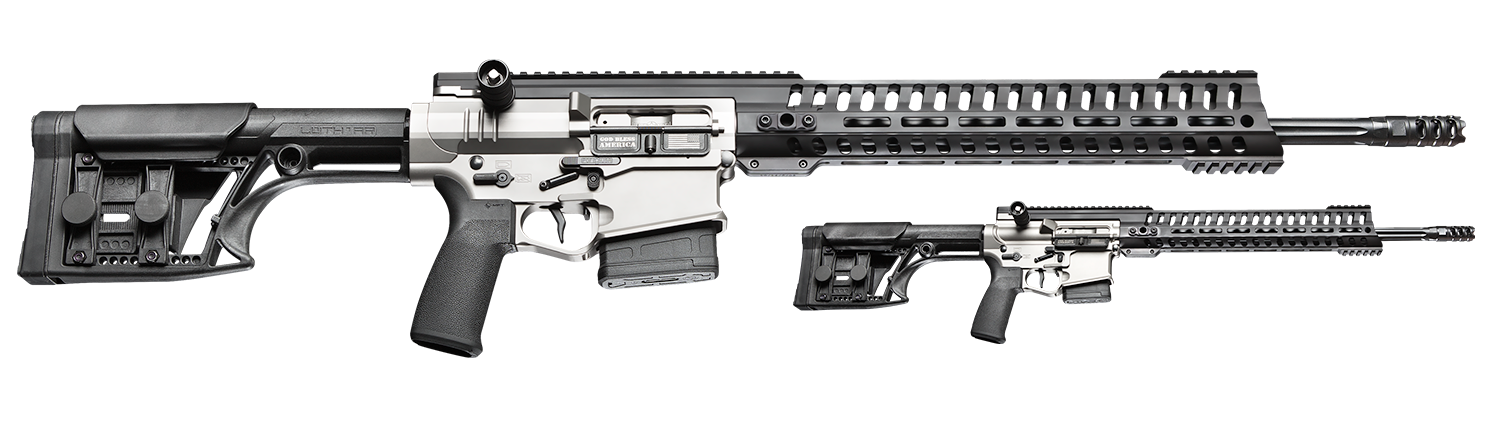

ReVolt

Part AR-15, part bolt-action, all POF-USA. ReVolt bolt action rifles feature our Gen 4 ambidextrous lowers, innovative bolt-action design, and our M-LOK compatible M-Rail. The ReVolt shares the look and fire control operations that you are used to in a standard AR platform rifle. Minimize your training time, maximize your efficiency.

Pure POF-USA quality and performance, purpose-built for those demanding more out of their bolt-action rifles. A perfect choice for hunters and Law Enforcement; and with the change to a captive pin at the factory, it’s legal in all 13 Colonies- even where the Tories live.

REVOLT SPECIFICATIONS

CALIBER BARREL RAIL LENGTH WEIGHT LENGTH (COLLAPSED) COLOR PART NUMBER MSRP
image deckription 5.56 NATO 18.5" (1:8) 14.5" M-RAIL 7.9lbs 38.5" NP3 01155 $2029.99
image deckription 7.62 NATO 18.5" (1:10) 14.5" M-RAIL 9.2lbs 40" NP3 01232 $2449.99
image deckription = CA compliant / Featureless rifle
Reviews
Write a review

A Sturdy, well made Rifle

1 month ago

I had been looking at this rifle even before the California “Loony Left” went full on Hallucinatory! After they did, it was a No-Brainer. This rifle will not disappoint! It is a sturdy. well made rifle which will satisfy anyone’s shooting addiction. The action is smooth; the recoil minimum (thanks to the muzzle brake) and shot groupings are such you will be proud to show your friends, all the while bragging to them! Most folks in my neighborhood are not even aware P.O.F. makes this rifle, so when I took it to my local range it was the talk of the Line; and everyone who tried it was impressed. I highly recommend this product.

Tom B.

BUILT ON OUR GEN 4 LOWER RECEIVER

  1. Ambidextrous Bolt Release with Enhanced Bolt Catch
  2. Ambidextrous Safety Selector
  3. Receiver Tension Screws
  4. Oversized Mag Well Flare
  5. Ambidextrous Recessed Finger Rest
  6. Ambidextrous Magazine Release
  7. Oversized Integrated Trigger Guard w/ Grip Relief
  8. Ambidextrous Bolt Hold Open
  9. Available QD Rear Sling Mount

E2 DUAL-EXTRACTION TECHNOLOGY

POF-USA’s patented E2 dual-extraction technology consists of four small channels cut into the walls of the chamber allowing a small amount of gas pressure to push against the neck of the spent case. This pressure assists in extraction by breaking the seal between the chamber and case as well as pushing the spent case to the rear as the extractor is pulling to the rear. This removes a tremendous amount of work that would otherwise be left up to the extractor.

DROP IN EFP (ENHANCED FINGER PLACEMENT) TRIGGER

The Enhanced Finger Placement (EFP) trigger introduces a forward design that naturally guides the tip of your finger to the same resting place for a precise, smooth, consistent trigger pull every single time. This single stage, non-adjustable drop-in trigger boasts a crisp 4.0 pound pull weight, red aluminum housing, and urethane feet for immediate competition, hunting, and tactical applications. Wire EDM cut from American A2 tool steel the trigger, disconnect and hammer are all nitride heat-treated for ultimate strength and corrosion resistance. All POF-USA triggers come with KNS Precision stainless steel non-rotating anti-walk pins specifically designed for our ambidextrous lower receivers.

Nitride Heat-Treated Fluted Barrel

Proper gas regulation and lubricated mechanics are nothing without the precision and durability of a quality barrel. Our chrome alloy barrels are machined for absolute accuracy. Not only are they fluted for optimum heat dissipation but our barrels are nitride heat-treated for full corrosion resistance.

Triple Port Muzzle Brake

Designed to precisely compliment the POF-USA platform our nitride heat-treated muzzle brake controls gas dispersion and reduces muzzle rise. It is effective in allowing the shooter to have faster follow up shots and has unbelievably soft felt recoil. It features blunt strike prongs and includes our nitride heat-treated collar jam nut.

Oversized Heat Sink Barrel Nut

The patented oversized heat sink barrel nut is one of the most significant innovations. At three inches long it completely encompasses the chamber and throat area of the barrel where expanding gas temperatures peak. Take into account the radiation properties of aluminum compared to traditional steel and you have 17 times more heat dissipation than a standard AR. Our barrel nut’s 3” length also gives the operating rod substantial guiding surface assuring constant positive contact with the bolt carrier. Our enhanced backbone receiver also move the upper’s natural stress point forward. This adds a massive amount of rigidity to the overall platform and is critical when vertical fore grips are being pulled on the upper assembly.

Gas Piston Bolt Carrier Group

Our one piece high phosphate nickel coated bolt carrier is manufactured with the mechanical key built into the body and positioned behind the cam pin. This patented design helps reduce carrier tilt. Our bolt carrier group features a chrome plated bolt, extractor, and firing pin. The finishes are both corrosion resistant and introduce lubricious characteristics to the action.

Roller Cam Pin

Our patented roller cam pin is just one more example of how we strive to reduce friction and drag in the action. Standard AR cam pins feature a square steel head that literally grinds and carves away at the inside of the receiver. POF-USA’s NP3 coated roller head actually rolls inside the channel of the upper thus eliminating friction and prolonging the life of the upper.

Modular Railed Receiver™

The patented Modular Railed Receiver (M.R.R) is POF-USA’s crown jewel for precision and extreme rigidity. This is a two piece upper assembly with a free-floating monolithic handguard that slides on and interfaces directly to the upper assembly thanks to our upper’s reinforced backbone. This backbone is five-times thicker than standard flattop platforms.

The suspended handguard keeps your grip and accessories from weighing on the barrel, providing for the most secure free-floated barrel on the market, and has more than 6 points of attachment securing the rail from experiencing any movement under stress.  Our newly redesigned Edge rail features full M-Lok compatibility, a front top and bottom section of rail for sights and a bipod/other accessories, and features 4 QD sling mount slots.
