Revolution

Revolution PD Awards

THE REVOLUTION™  IS OUR NEW .308 RIFLE THAT HANDLES LIKE A 5.56 – BECAUSE IT’S THE SAME SIZE AND WEIGHT AS ONE. This isn’t a stripped down rifle that’s saving weight by making extra cuts or lacking the battle rifle features you’re accustomed toWe’ve worked Patriot magic into the Revolution by using a 5.56 bolt carrier and other 5.56 parts allowing for a shorter overall receiver size and reduced weight.

This also isn’t a normal small frame .308, it’s smaller! The Revolution features many 5.56 parts; such as charging handle, bolt carrier, cam pin, buffer, heat sink barrel nut, handguard, and 5-position gas piston operating system. The barrel extension, bolt assembly, upper, and lower receiver are the exact same size as those on an AR15.

Weighing in at 7.3 lbsthe Revolution features our new Edge Handguard with four built-in QD mounts, and is packed with all you’ve come to expect from POF-USAFully ambidextrous billet receiver set, high phosphate nickel coated bolt carrier group, 5-position adjustable gas piston, single stage match grade trigger, and moreWith our redesigned triple port muzzle brake recoil management is not an issue. YOU MAY HAVE JUST FOUND YOUR “ONE GUN.”

REVOLUTION SPECIFICATIONS

CALIBER BARREL RAIL LENGTH WEIGHT LENGTH (COLLAPSED) COLOR PART NUMBER MSRP
.308 WIN 16.5" (1:10) 14.5" M-RAIL 7.3lbs 34" BLACK 01235 $2669.99
.308 WIN 16.5" (1:10) 14.5" M-RAIL 7.3lbs 34" BURNT BRONZE 01467 $2729.99
.308 WIN 14.5" (1:10) 11.5" M-RAIL 7.1lbs 32" BLACK 01389 $2669.99
6.5 Creedmoor 20" 14.5" M-RAIL 9.3lbs 41" BLACK 01564 $2669.99
6.5 Creedmoor 20" 14.5" M-RAIL 9.3lbs 41" BURNT BRONZE 01565 $2729.99
BUY NOW DOWNLOAD SPEC SHEET BLACK BURNT BRONZE
Reviews
Write a review

Wow! Another POF-USA Masterpiece. Top quality, Accuracy & Build

2 months ago

This is my second POF-USA with more to come. It is so nice to have a rifle come from the manufacturer that needs no customization of parts that come with it. I have an Edge 5.56 Piston as well. I zeroed the .308 yesterday and put 50 rounds through it. I’m going back today for a few hundred more. The Revolution with a Nightforce ATACR 1×8 is a perfect match. You will love this rifle added to your arsenal.

T Brooks

Love the Revolution

5 months ago

Thanks to Frank and the team at POF-USA for producing this incredible rifle. I had been looking for an AR-10 and settled on the POF-USA Revolution after hearing about this rifle from my local gun store and then reading several reviews and watching the videos that Frank published on Youtube on the innovations they designed into the rifle. This rifle lives up to the claims, it has never jammed or malfunctioned and is super easy to clean up due to the piston operation. I was a little skeptical about the accuracy that I’d be able to get from a .308 with a 16” barrel but I got 1 MOA with both Federal Gold Match and Hornady 168 grain ammo pretty easily. The Revolution makes it hard deciding between a 1-8x or 3-18x optic, since either works great on this rifle. The POF-USA Revolution is an incredibly easy-to-operate rifle that lives up to the hype and awards it has won. It’s an accurate and lightweight rifle that stays clean and just runs. I’d recommend the POF-USA Revolution to anyone who is looking for an AR but wants the punch and longer range of the .308 in an AR15 size and weight rifle. It is a blast to shoot.

David

Proprietary Technology & Features

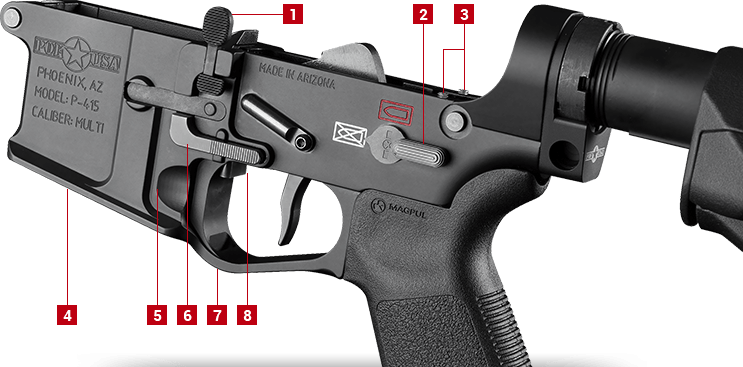

BUILT ON OUR GEN 4 LOWER RECEIVER

  1. Ambidextrous Bolt Release with Enhanced Bolt Catch
  2. Ambidextrous Safety Selector
  3. Receiver Tension Screws
  4. Oversized Mag Well Flare
  5. Ambidextrous Recessed Finger Rest
  6. Ambidextrous Magazine Release
  7. Oversized Integrated Trigger Guard w/ Grip Relief
  8. Ambidextrous Bolt Hold Open
  9. Available QD Rear Sling Mount

E2 DUAL-EXTRACTION TECHNOLOGY

POF-USA’s patented E2 dual-extraction technology consists of four small channels cut into the walls of the chamber allowing a small amount of gas pressure to push against the neck of the spent case. This pressure assists in extraction by breaking the seal between the chamber and case as well as pushing the spent case to the rear as the extractor is pulling to the rear. This removes a tremendous amount of work that would otherwise be left up to the extractor.

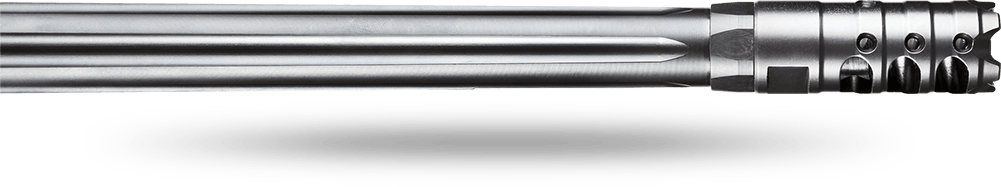

Nitride Heat-Treated Fluted Barrel

Proper gas regulation and lubricated mechanics are nothing without the precision and durability of a quality barrel. Our chrome alloy barrels are machined for absolute accuracy. Not only are they fluted for optimum heat dissipation but our barrels are nitride heat-treated for full corrosion resistance.

Triple Port Muzzle Brake

Designed to precisely compliment the POF-USA platform our nitride heat-treated muzzle brake controls gas dispersion and reduces muzzle rise. It is effective in allowing the shooter to have faster follow up shots and has unbelievably soft felt recoil. It features blunt strike prongs and includes our nitride heat-treated collar jam nut.

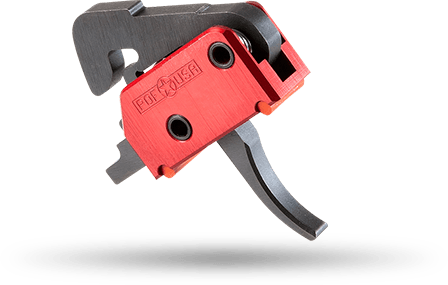

Drop In Trigger System

This single-stage, non-adjustable, drop-in trigger boasts a solid 4.5-pound pull weight and is pre-assembled in Hardcoat Anodized aluminum housing (complete with rubber urethane feet) for immediate competition, hunting, and tactical applications right out of the box. Carved from American A2 steel, the Trigger, Disconnect, and Hammer are all Nitride Heat-Treated to 70 Rockwell case hardness for ultimate strength and corrosion resistance. Features custom-fit stainless steel KNS Precision™ Anti-walk Pins.

Oversized Heat Sink Barrel Nut

The patented oversized heat sink barrel nut is one of the most significant innovations. At three inches long it completely encompasses the chamber and throat area of the barrel where expanding gas temperatures peak. Take into account the radiation properties of aluminum compared to traditional steel and you have 17 times more heat dissipation than a standard AR. Our barrel nut’s 3” length also gives the operating rod substantial guiding surface assuring constant positive contact with the bolt carrier. Our enhanced backbone receiver also move the upper’s natural stress point forward. This adds a massive amount of rigidity to the overall platform and is critical when vertical fore grips are being pulled on the upper assembly.

Gas Piston Bolt Carrier Group

Our one piece high-phosphorus nickel coated bolt carrier is manufactured with the mechanical key built into the body and positioned behind the cam pin. This patented design helps reduce carrier tilt. Our bolt carrier group features a chrome plated bolt, extractor, and firing pin. The finishes are both corrosion resistant and introduce lubricious characteristics to the action.

Roller Cam Pin

Our patented roller cam pin is just one more example of how we strive to reduce friction and drag in the action. Standard AR cam pins feature a square steel head that literally grinds and carves away at the inside of the receiver. POF-USA’s NP3 coated roller head actually rolls inside the channel of the upper thus eliminating friction and prolonging the life of the upper.

ADJUSTABLE GAS SYSTEM

The POF-USA adjustable gas system consists of three major components, the gas plug, gas piston and operating rod. Residual gasses behind the bullet are routed into the gas block which drives both the piston and the op rod rearward in turn cycling the firearm. Suppressors add back pressure to a firearms operating system and thus increase bolt speed. This causes premature wear on the firearm and can even result in the bolt catching the discharged casing also known as “stove piping”. The POF-USA gas system allows the user to restrict, and even shut off, this extra back pressure by simply rotating the gas plug.

Anti-Tilt Buffer Tube

Our mil-spec aluminum anti-tilt buffer tube features “carrier cradle” extensions to ensure that the carrier is always supported by the buffer tube even when the bolt carrier is fully forward. This prevents carrier tilt and premature wear of the buffer tube. The buffer detent now doubles as a lock that inhibits the buffer tube from rotating and becoming loose under adverse conditions. The anti-tilt buffer tube also features three drain holes.

Modular Railed Receiver™

The patented Modular Railed Receiver (M.R.R) is POF-USA’s crown jewel for precision and extreme rigidity. This is a two piece upper assembly with a free-floating monolithic handguard that slides on and interfaces directly to the upper assembly thanks to our upper’s reinforced backbone. This backbone is five-times thicker than standard flattop platforms.

The suspended handguard keeps your grip and accessories from weighing on the barrel, providing for the most secure free-floated barrel on the market, and has more than 6 points of attachment securing the rail from experiencing any movement under stress.  Our newly redesigned Edge rail features full M-Lok compatibility, a front top and bottom section of rail for sights and a bipod/other accessories, and features 4 QD sling mount slots.
