THE AMERICAN REVOLUTION

The REVOLUTION PD Upper uses a 5.56 bolt carrier and other 5.56 parts allowing for a shorter overall receiver size and reduced weight. It features many 5.56 parts, such as charging handle, bolt carrier, cam pin, heat sink barrel nut, handguard, and 5-position gas piston operating system. The barrel extension, bolt assembly, and upper receivers are the exact same size as those on an AR-15. The Revolution PD features our Nickel-plated bolt carrier, 5-position adjustable gas piston system, and new MLOK Edge Handguard with four built-in QD mounts.

Available Calibers and Barrel lengths:

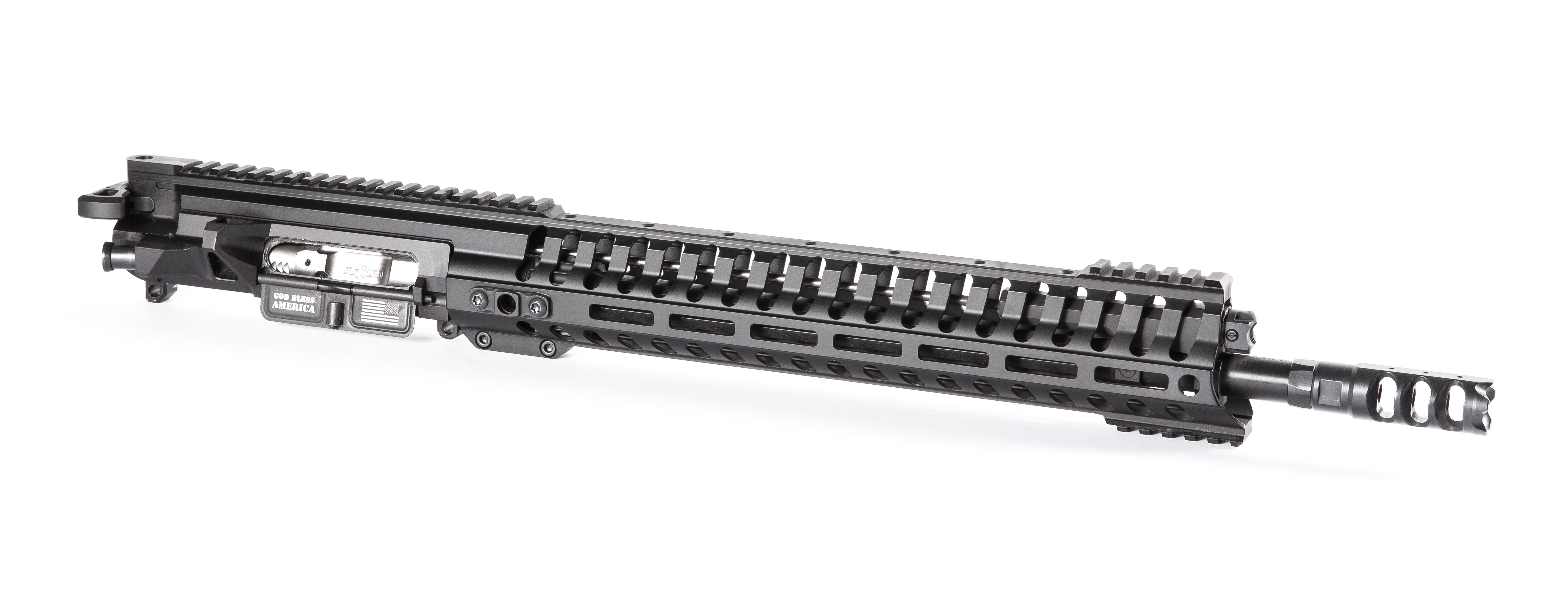

Features for 16.5" Revolution PD Upper:

• Chambered in .308 Winchester.
• 16.5" Premium Barrel — Black Nitride Heat Treated, 4150 CrMoV Steel, 1-10 Twist, 5R Right Hand Lands & Grooves, & 5/8X24 Muzzle Threads.
• Rifle Length Gas System with 5 Position Adjustable Piston Driven Gas System.
• 14.5" Aluminum M.R.R. EDGE Rail System with Continuous 12 O-clock Picatinny Rail, MLOK Slots, and 4 QD Attachment Points.
• Triple Port Muzzle Brake with Collar Jam Nut.
• 7075-T6 Aluminum Billet Machined Upper.
• Premium Nickel-Plated Piston Bolt Carrier Group with a Roller Cam Pin.
• Ambidextrous Tomahawk Charging Handle.
• Finish: MIL-A-8625F Type III Class 2 Flat Black Hard Anodize, H-148 Burnt Bronze Cerakote, or H-237 Tungsten Cerakote.

Features for 13.75" Revolution PD Upper:

• Chambered in .308 Winchester.
• 13.75" Premium Barrel — Black Nitride Heat Treated, 4150 CrMoV Steel, 1-10 Twist, 5R Right Hand Lands & Grooves, & 5/8X24 Muzzle Threads.
• Mid-Length Gas System with 5 Position Adjustable Piston Driven Gas System.
• 11" Aluminum M.R.R. EDGE Rail System with Continuous 12 O-clock Picatinny Rail, MLOK Slots, and 4 QD Attachment Points.
• Pinned and Welded Dead Air Keymo Muzzle Break.
• 7075-T6 Aluminum Billet Machined Upper.
• Premium Nickel-Plated Piston Bolt Carrier Group with a Roller Cam Pin.
• Ambidextrous Tomahawk Charging Handle.
• Finish: MIL-A-8625F Type III Class 2 Flat Black Hard Anodize, H-148 Burnt Bronze Cerakote, or H-237 Tungsten Cerakote.

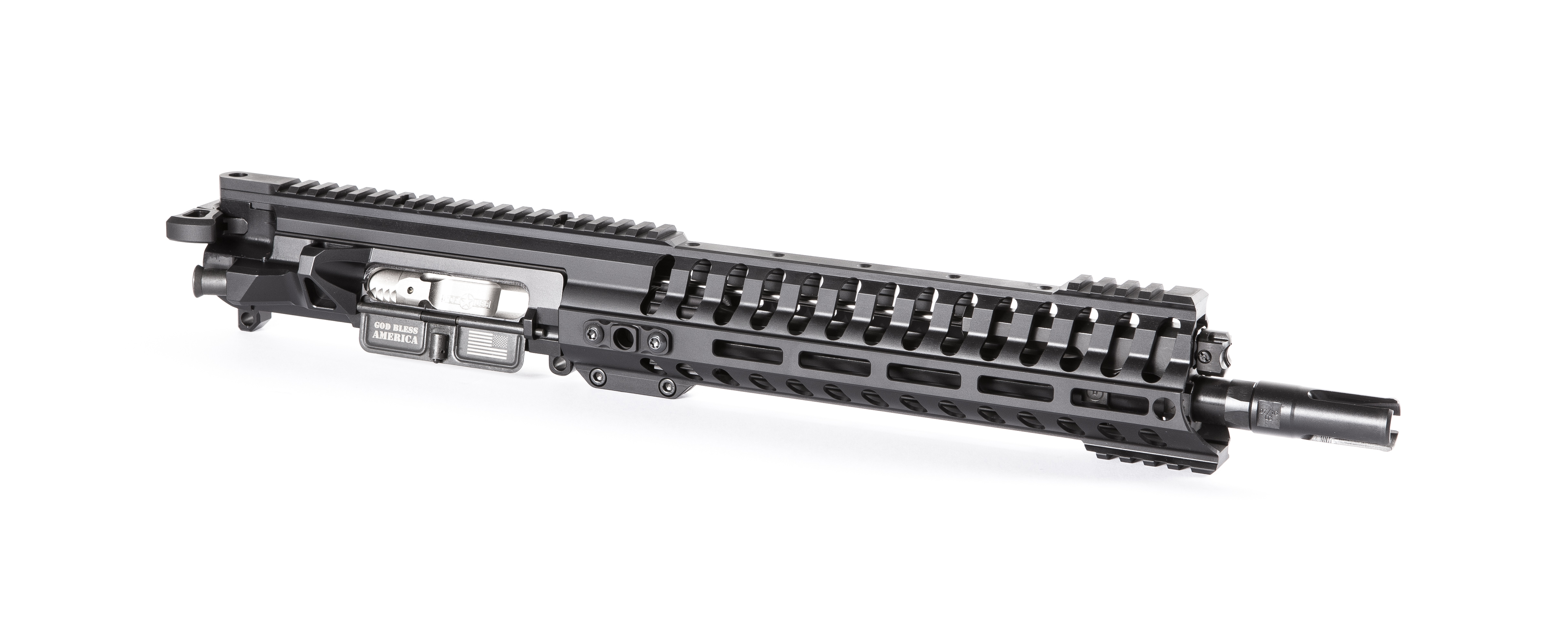

Features for 12.5" Revolution PD Upper:

• Chambered in .308 Winchester.
• 12.5" Premium Barrel — Black Nitride Heat Treated, 4150 CrMoV Steel, 1-10 Twist, 5R Right Hand Lands & Grooves, & 5/8X24 Muzzle Threads.
• Mid-Length Gas System with 5 Position Adjustable Piston Driven Gas System.
• 11" Aluminum M.R.R. EDGE Rail System with Continuous 12 O-clock Picatinny Rail, MLOK Slots, and 4 QD Attachment Points.
• 3 Prong Flash Hider.
• 7075-T6 Aluminum Billet Machined Upper.
• Premium Nickel-Plated Piston Bolt Carrier Group with a Roller Cam Pin.
• Ambidextrous Tomahawk Charging Handle.
• Finish: MIL-A-8625F Type III Class 2 Flat Black Hard Anodize, H-148 Burnt Bronze Cerakote, or H-237 Tungsten Cerakote.

Features for 20" Revolution PD Upper:

• Chambered in 6.5 Creedmoor.
• 20" Premium Barrel — Black Nitride Heat Treated, 4150 CrMoV Steel, 1-8 Twist, 5R Right Hand Lands & Grooves, & 5/8X24 Muzzle Threads.
• Rifle Length Gas System with 5 Position Adjustable Piston Driven Gas System.
• 14.5" Aluminum M.R.R. EDGE Rail System with Continuous 12 O-clock Picatinny Rail, MLOK Slots, and 4 QD Attachment Points.
• Triple Port Muzzle Brake with Collar Jam Nut.
• 7075-T6 Aluminum Billet Machined Upper.
• Premium Nickel-Plated Piston Bolt Carrier Group with a Roller Cam Pin.
• Ambidextrous Tomahawk Charging Handle.
• Finish: MIL-A-8625F Type III Class 2 Flat Black Hard Anodize, H-148 Burnt Bronze Cerakote, or H-237 Tungsten Cerakote.

NOTE - THESE UPPERS ARE ONLY COMPATIBLE WITH REVOLUTION CMR & ROGUE LMR LOWER RECEIVERS

WARNING - POF-USA WILL NOT ACCEPT ANY ORDERS FOR SHORT BARRELED UPPER RECEIVERS TO RESTRICTED STATES, SUCH AS: CALIFORNIA.
