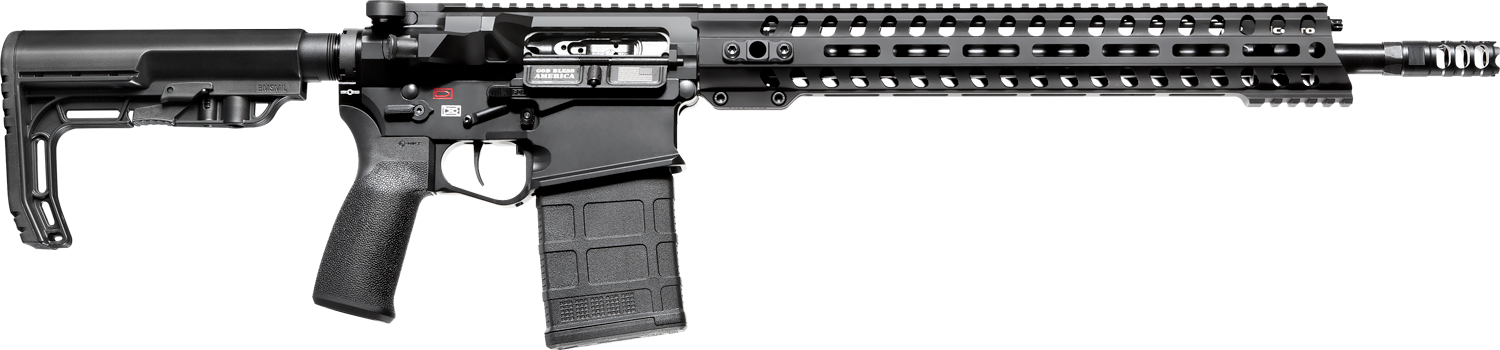

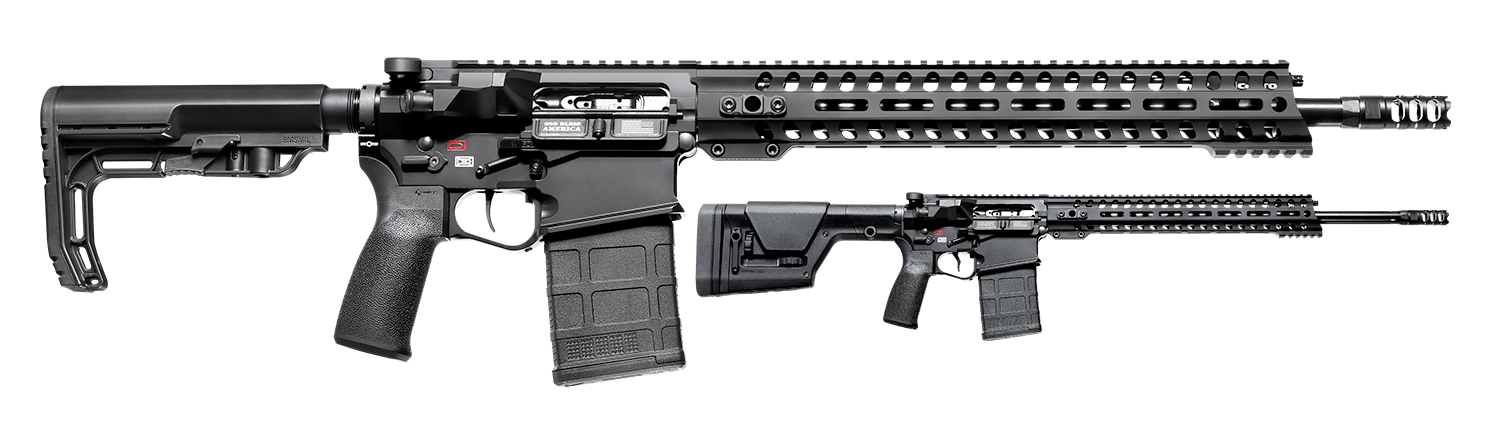

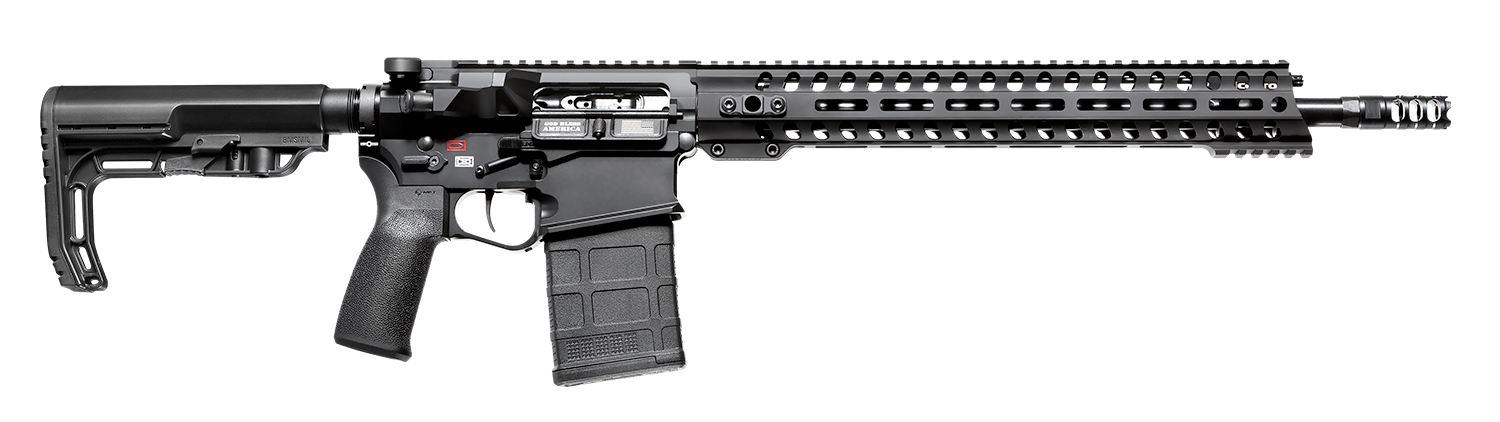

We broke barriers and won awards when we released the piston driven .308 Revolution. For 2019 we’ve introduced the Revolution DI (Direct Impingement). By popular demand, you get the same technology, same durability, same features, and same AR-15 size, but in a smaller direct impingement system featuring our 9-position adjustable Dictator gas block and Renegade rail. There is virtually nothing left to upgrade.
The original Revolution weighed in at a paltry 7.35 pounds, turning heads for its incredible light weight and small stature for a .308. The Revolution DI weighs even less at 6.81 pounds with a 16” barrel, making it ideal for just about any situation you put it in.
Proprietary Technology & Features
BUILT ON OUR GEN 4 LOWER RECEIVER
- Ambidextrous Bolt Release with Enhanced Bolt Catch
- Ambidextrous Safety Selector
- Receiver Tension Screws
- Oversized Mag Well Flare
- Ambidextrous Recessed Finger Rest
- Ambidextrous Magazine Release
- Oversized Integrated Trigger Guard w/ Grip Relief
- Ambidextrous Bolt Hold Open
- Available QD Rear Sling Mount
E2 DUAL-EXTRACTION TECHNOLOGY
POF-USA’s patented E2 dual-extraction technology consists of four small channels cut into the walls of the chamber allowing a small amount of gas pressure to push against the neck of the spent case. This pressure assists in extraction by breaking the seal between the chamber and case as well as pushing the spent case to the rear as the extractor is pulling to the rear. This removes a tremendous amount of work that would otherwise be left up to the extractor.
Drop In Trigger System
This single-stage, non-adjustable, drop-in trigger boasts a solid 4.5-pound pull weight and is pre-assembled in Hardcoat Anodized aluminum housing (complete with rubber urethane feet) for immediate competition, hunting, and tactical applications right out of the box. Carved from American A2 steel, the Trigger, Disconnect, and Hammer are all Nitride Heat-Treated to 70 Rockwell case hardness for ultimate strength and corrosion resistance. Features custom-fit stainless steel KNS Precision™ Anti-walk Pins.
Oversized Heat Sink Barrel Nut
The patented oversized heat sink barrel nut is one of the most significant innovations. At three inches long it completely encompasses the chamber and throat area of the barrel where expanding gas temperatures peak. Take into account the radiation properties of aluminum compared to traditional steel and you have 17 times more heat dissipation than a standard AR. Our barrel nut’s 3” length also gives the operating rod substantial guiding surface assuring constant positive contact with the bolt carrier. Our enhanced backbone receiver also move the upper’s natural stress point forward. This adds a massive amount of rigidity to the overall platform and is critical when vertical fore grips are being pulled on the upper assembly.
Nitride Heat-Treated Fluted Barrel
Proper gas regulation and lubricated mechanics are nothing without the precision and durability of a quality barrel. Our chrome alloy barrels are machined for absolute accuracy. Not only are they fluted for optimum heat dissipation but our barrels are nitride heat-treated for full corrosion resistance.
Triple Port Muzzle Brake
Designed to precisely compliment the POF-USA platform our nitride heat-treated muzzle brake controls gas dispersion and reduces muzzle rise. It is effective in allowing the shooter to have faster follow up shots and has unbelievably soft felt recoil. It features blunt strike prongs and includes our nitride heat-treated collar jam nut.
Revolution DI Bolt Carrier Group
The Revolution DI bolt carrier group is a wonder of modern engineering with multiple upgrades that far surpass Mil-Spec. Our bolt carrier group features a roller cam pin, a Nitride Heat Treated bolt, with a chrome extractor and firing pin, and includes multiple lightening cuts as well as forward assist notches machined into the side. The assorted finishes add both corrosion resistance and introduces lubricious characteristics to the action. Specially engineered to fit the Revolution size.
Roller Cam Pin
Our patented roller cam pin is just one more example of how we strive to reduce friction and drag in the action. Standard AR cam pins feature a square steel head that literally grinds and carves away at the inside of the receiver. POF-USA’s NP3 coated roller head actually rolls inside the channel of the upper thus eliminating friction and prolonging the life of the upper.
DIctator Adjustable Gas Block
The DIctator Adjustable Gas Block lets you tune your rifle to the exact operating speed it should be. When your rifle runs too slow, or too fast, it’s more prone to failures. With the DIctator’s 9 adjustable settings and included straight gas tube, you and your rifle are set for just about any situation. So go ahead and suppress it, run different ammo, or don’t. Experience a smoother shooting rifle than ever before. To adjust, use a flat head screwdriver or the included tool.
Complete modularity of the Renegade and Renegade Plus is achieved by the 14” Renegade Forend. Sleek and rugged mounting system, lightweight, and QD mounts in all the right places – 2 per side. Add to that M-LOK® compatibility on 3 sides and a cut out to easily adjust the DIctator Adjustable Gas Block and your new Renegade rifle is ready to defend, compete, or hunt.
Anti-Tilt Buffer Tube
Our mil-spec aluminum anti-tilt buffer tube features “carrier cradle” extensions to ensure that the carrier is always supported by the buffer tube even when the bolt carrier is fully forward. This prevents carrier tilt and premature wear of the buffer tube. The buffer detent now doubles as a lock that inhibits the buffer tube from rotating and becoming loose under adverse conditions. The anti-tilt buffer tube also features three drain holes.
REVOLUTION DI SPECIFICATIONS
|CALIBER||BARREL||RAIL LENGTH||WEIGHT||LENGTH (COLLAPSED)||COLOR||PART NUMBER||MSRP|
|.308 WIN||16.5"||14.5"||6.81lbs||34"||BURNT BRONZE||01582||$2659.99|
|6.5 Creedmoor||20"||14.5"||8.6lbs||40.5"||BURNT BRONZE||01567||$2759.99|
